ر.س 85.00 – ر.س 230.00 EX.VAT
Brand:
- Versatile tool designed for secure load binding in transportation applications.
- Features continuous take-up for infinite adjustment and one-piece assembly for durability.
- Constructed from drop-forged alloy steel with a rust-proofed ratchet spring for reliable performance.
Please select Diameter
Ask An Expert
Our experts are ready to help.
Your Payment is 100% Secure

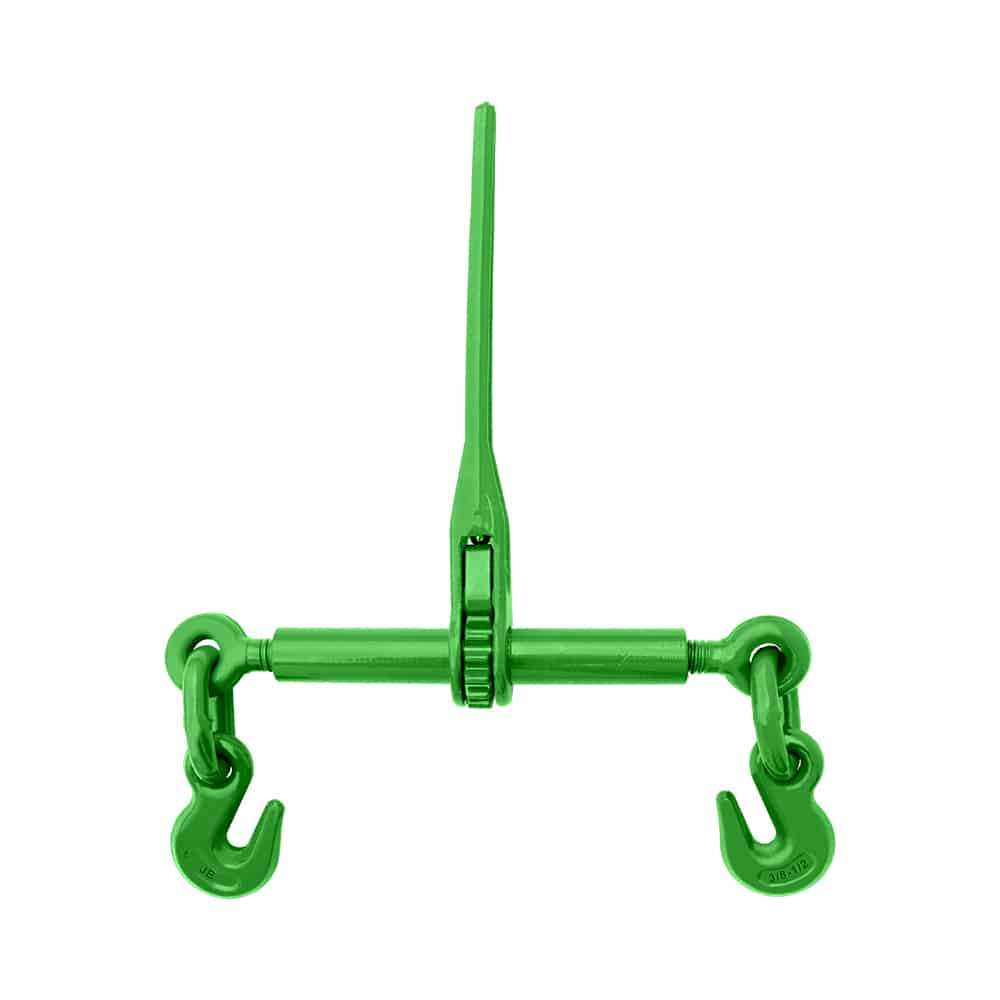

LOAD BINDER RATCHET TYPE
Key Features:
- Versatile Design: The load binder ratchet type is designed for all types of transport use, providing a reliable solution for securing loads on trucks, trailers, and other vehicles.
- Continuous Take-Up Feature: Equipped with a continuous take-up feature, this load binder ratchet type offers infinite adjustment, allowing it to easily get the last link of the chain for precise and secure tensioning.
- One-Piece Assembly: Featuring a one-piece assembly design, this load binder ratchet type eliminates the need for bolts or nuts, minimizing the risk of loosening during transportation and ensuring long-lasting reliability.
- Rust-Proofed Ratchet Spring: The ratchet spring is rust-proofed, providing durability and reliability in harsh environmental conditions, ensuring smooth and consistent operation.
- Heavy-Duty Construction: All load-bearing or holding parts of the load binder ratchet type are forged from drop-forged alloy steel, quenched, and tempered for exceptional strength and durability.
- Easy Operating Positive Ratchet: The load binder ratchet type is equipped with an easy operating positive ratchet, allowing for quick and efficient tensioning of loads with minimal effort.
- Painted Finish: Finished with a durable paint coating, this load binder ratchet type offers corrosion resistance and a professional appearance, ensuring longevity and reliability in various working environments.
- Reinforced Hooks and Special Safety Devices: Fitted with reinforced hooks and special safety devices, this load binder ratchet type provides a secure attachment and prevents accidental disengagement during transportation.
- Minimum Breaking Load: The minimum breaking load of the load binder ratchet type is 2 times the lashing capacity, ensuring safety and reliability in critical load-binding operations.
- CE Certification: CE certified with size, lashing capacity, and SSTC embossed, this load binder ratchet type meets international quality and safety standards, ensuring compliance and traceability

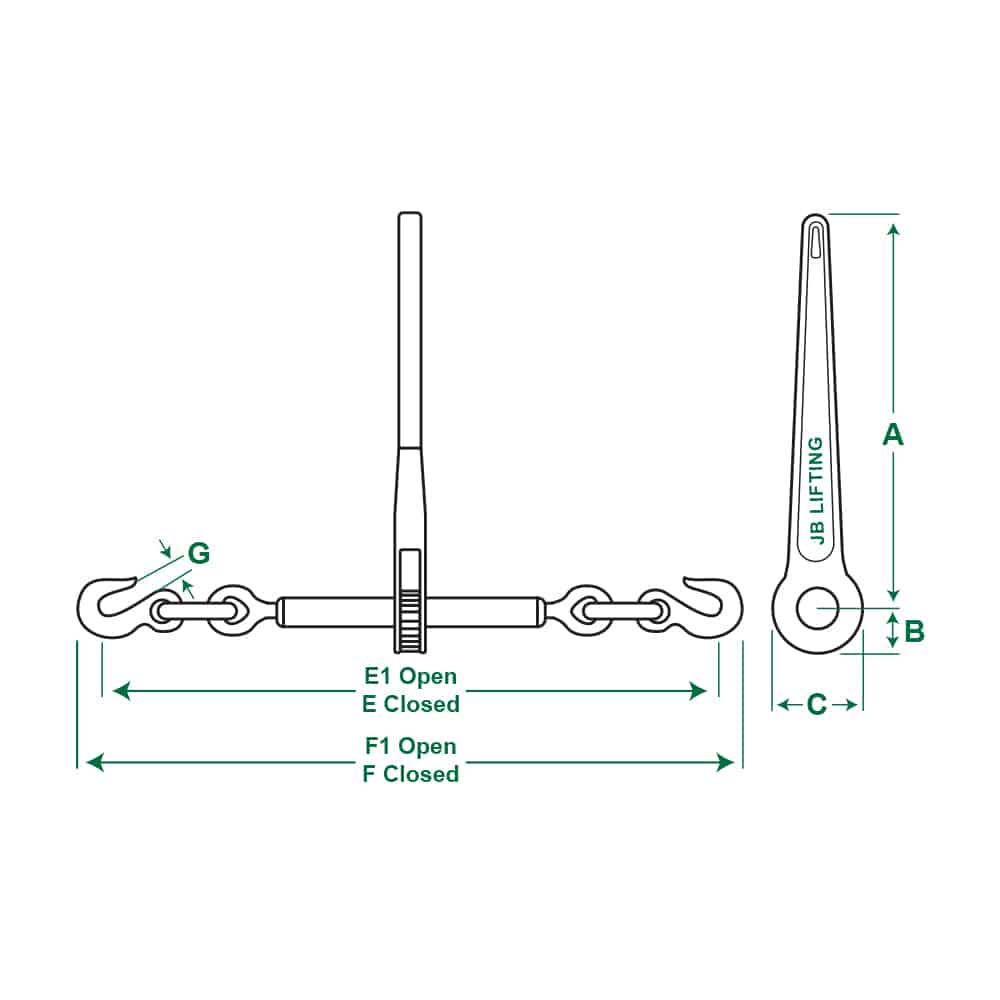

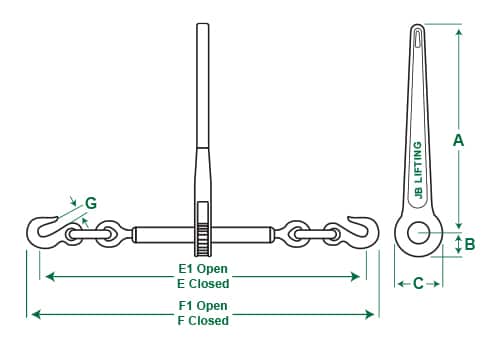

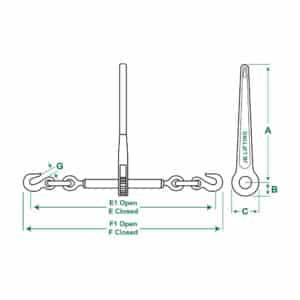

Specifications:
| ITEM CODES | SIZE | CHAIN SIZE | WLL | PL | MBL | DIMENSION | N.W | |||||||
| (mm) | (IN) | (LBS) | (LBS) | (LBS) | A | B | C | E1 | E | F | F1 | G | (LBS) | |
| LBR08 | 8 | 1/4”-5/16” | 2600 | 5200 | 7800 | 7.16 | 0.89 | 1.77 | 16.22 | 21.26 | 17.79 | 22.83 | 0.35 | 3.52 |
| LBR10 | 10 | 5/16”-3/8” | 5400 | 10800 | 19000 | 13.92 | 1.30 | 2.60 | 22.64 | 30.64 | 25.24 | 33.24 | 0.51 | 10.5 |
| LBR12 | 13 | 3/8”-1/2” | 9200 | 18400 | 33000 | 13.92 | 1.30 | 2.60 | 24.13 | 32.13 | 27.04 | 35.04 | 0.59 | 12.9 |
| LBR16 | 16 | 1/2”-5/8” | 13000 | 26000 | 46000 | 13.92 | 1.30 | 2.60 | 26.45 | 34.45 | 30.07 | 38.07 | 0.74 | 14.4 |
Application:
Our Load Binder Ratchet Type is ideal for a wide range of transport applications, including:
- Trucking and Hauling: Used to secure loads on flatbed trucks, trailers, and other vehicles during transit.
- Shipping and Logistics: Essential for securing cargo containers and palletized goods during shipping and handling.
- Construction: Used for securing construction materials and equipment on job sites and transporting them safely.
How to Use:
- Select Proper Size: Choose the appropriate size of the load binder ratchet type based on the size and weight of the load to be secured, ensuring compatibility with the lashing capacity.
- Attach to Load: Attach the hooks of the load binder ratchet type to the anchor points or tie-down points on the load.
- Tensioning: Use the ratchet mechanism to tension the load binder ratchet type, applying sufficient tension to secure the load in place.
- Locking: Once the desired tension is achieved, lock the ratchet mechanism into place to prevent loosening during transportation.
- Release: To release the load, disengage the ratchet mechanism and release the tension, allowing for quick and easy removal of the load binder ratchet type.
| Weight | N/A |
|---|---|
| Chain Diameter (mm) | 10mm, 13mm, 16mm |
