ر.س 100.00 – ر.س 1,781.25 EX.VAT
Brand:

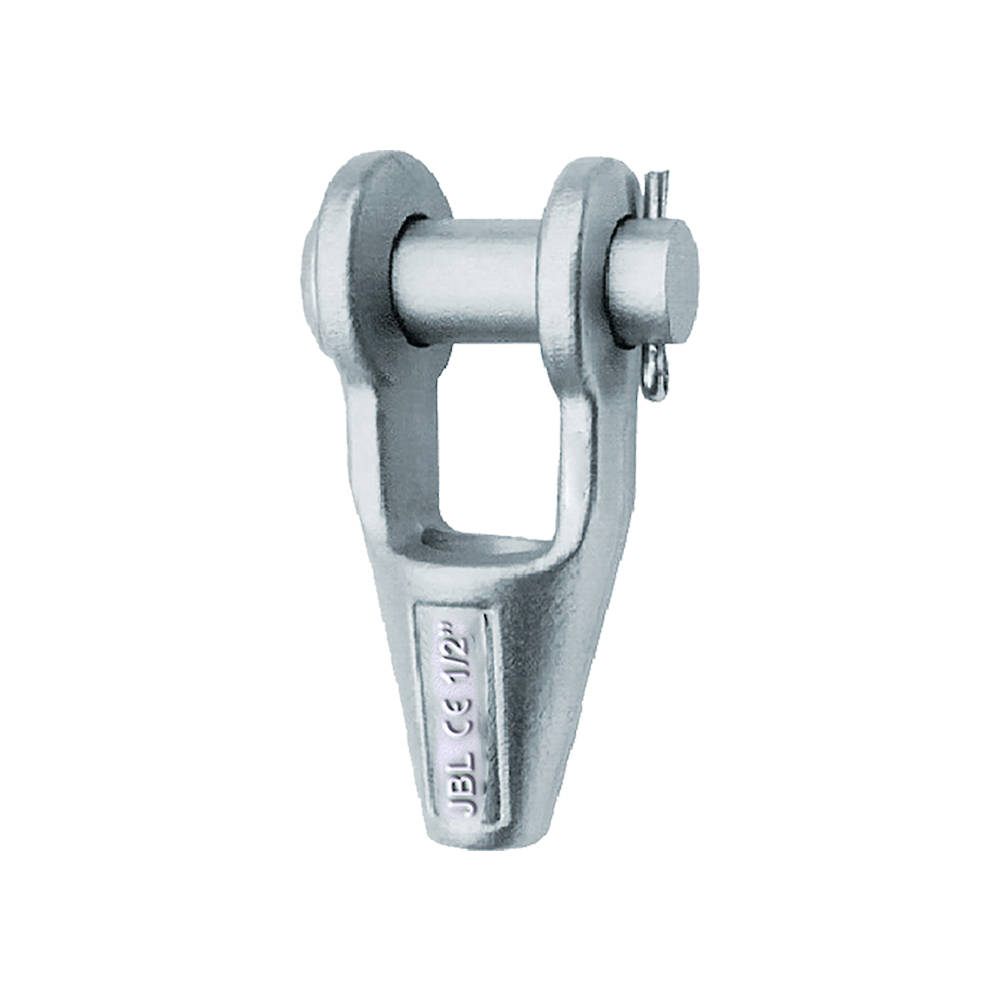

Our Wire Rope Open Spelter Socket is a specialized fitting used for wire rope termination and attachment. It consists of an open-ended, tubular structure with a conical or spelter socket that is inserted and swung onto the end of a wire rope. This type of socket is designed to create a secure and durable termination point, allowing for the attachment of the wire rope to various equipment and structures. Our Wire Rope Open Spelter Sockets are commonly used in rigging, lifting, and suspension applications where a strong and reliable connection is essential for safety and load-bearing capabilities.
Ask An Expert
WIRE ROPE OPEN SPELTER SOCKET
Specifications:

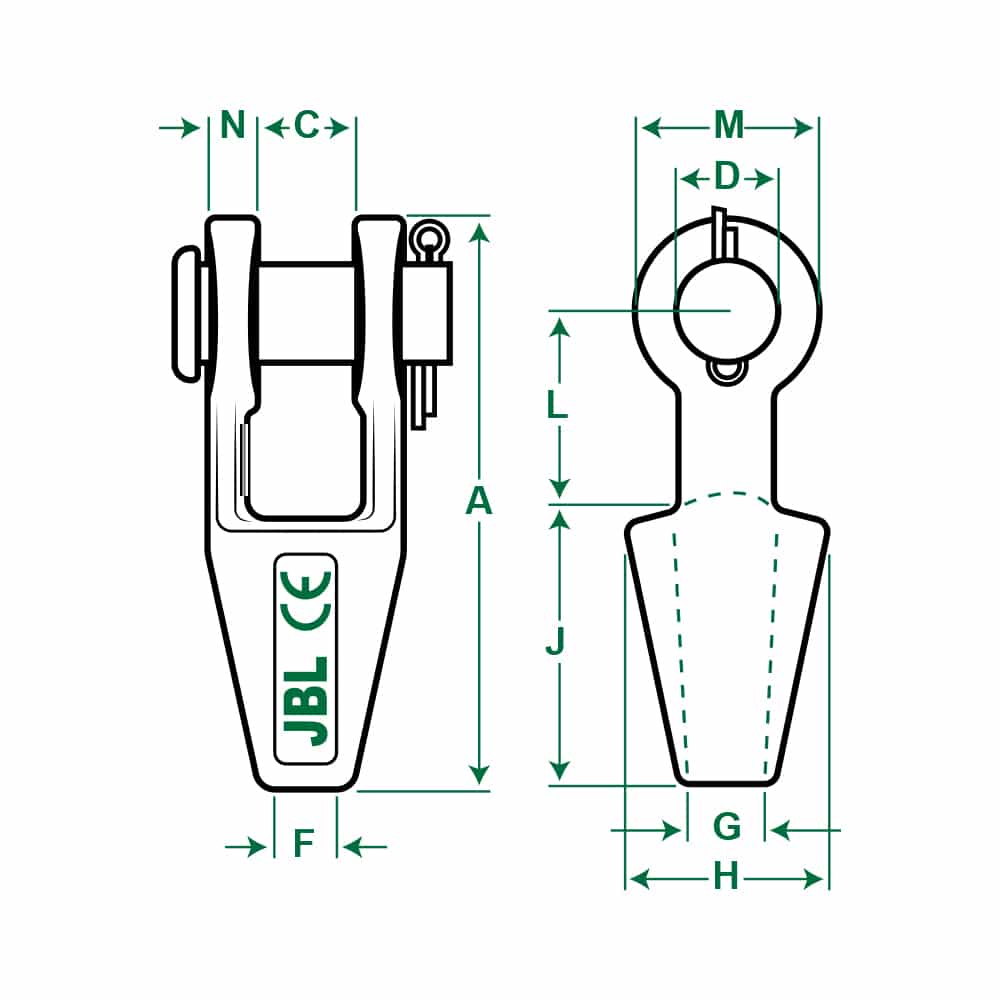

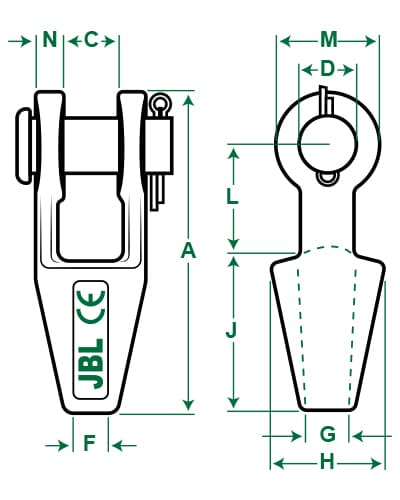

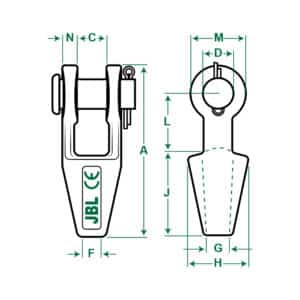

| ItemCode(s) | Rope Diameter | Structural Strand Dia | Weight | Dimensions | |||||||||
| A | C | D | F | G | H | J | L | M | N | ||||
| (mm) | (mm) | each/kgs | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | |
| SKSR6-7 | 6-7 | – | 0.50 | 116 | 19.1 | 17.5 | 9.65 | 17.5 | 39.6 | 57.0 | 39.6 | 33.3 | 9.10 |
| SKSR8-10 | 8-10 | – | 0.59 | 123 | 20.6 | 20.6 | 12.7 | 20.6 | 42.9 | 57.0 | 44.5 | 38.1 | 11.2 |
| SKSR11-13 | 11-13 | – | 1.02 | 141 | 25.4 | 25.4 | 14.2 | 23.9 | 47.8 | 63.5 | 51.0 | 47.8 | 12.7 |
| SKSR14-16 | 14-16 | 12-13 | 1.63 | 171 | 31.8 | 30.2 | 17.5 | 28.7 | 57.0 | 76.0 | 63.5 | 57.0 | 14.2 |
| SKSR18 | 18 | 14-16 | 2.64 | 202 | 38.1 | 35.1 | 20.6 | 31.8 | 66.5 | 89.0 | 76.0 | 66.5 | 15.7 |
| SKSR20-22 | 20-22 | 18-19 | 4.38 | 235 | 44.5 | 41.4 | 23.9 | 38.1 | 82.5 | 102 | 89.0 | 79.5 | 20.3 |
| SKSR24-26 | 24-26 | 20-22 | 7.03 | 268 | 51.0 | 51.0 | 28.7 | 44.5 | 95.5 | 114 | 102 | 95.5 | 22.4 |
| SKSR28-30 | 28-30 | 24-26 | 9.75 | 300 | 57.0 | 57.0 | 31.8 | 51.0 | 105 | 127 | 117 | 105 | 25.4 |
| SKSR32-35 | 32-35 | 28 | 14.1 | 335 | 63.5 | 63.5 | 38.1 | 57.0 | 121 | 140 | 127 | 121 | 28.7 |
| SKSR38 | 38 | 30-32 | 21.4 | 384 | 76.0 | 70.0 | 41.4 | 70.0 | 133 | 152 | 152 | 137 | 30.2 |
| SKSR40-42 | 40-42 | 33-35 | 24.9 | 413 | 76.0 | 76.0 | 44.5 | 76.0 | 140 | 165 | 165 | 146 | 33.3 |
| SKSR44-48 | 44-48 | 36-40 | 37.2 | 464 | 89.0 | 89.0 | 51.0 | 79.5 | 162 | 191 | 178 | 165 | 39.6 |
| SKSR50-54 | 50-54 | 42-45 | 59 | 546 | 102 | 102 | 57.0 | 95.5 | 187 | 216 | 229 | 178 | 46.0 |
| SKSR56-60 | 56-60 | 46-48 | 76 | 597 | 114 | 114 | 36.5 | 102 | 210 | 229 | 254 | 197 | 54.0 |
| SKSR64-67 | 64-67 | 50-54 | 114 | 648 | 127 | 127 | 73.0 | 114 | 235 | 24 | 274 | 216 | 60.5 |
| SKSR70-73 | 70-73 | 56-62 | 143 | 692 | 133 | 133 | 79.0 | 124 | 267 | 279 | 279 | 229 | 73.0 |
| SKSR75-80 | 75-80 | 64-67 | 172 | 737 | 146 | 146 | 86.0 | 133 | 282 | 305 | 287 | 241 | 76.0 |
| SKSR82-86 | 82-86 | 70-73 | 197 | 784 | 159 | 159 | 92.0 | 146 | 302 | 330 | 300 | 254 | 79.0 |
| SKSR88-92 | 88-92 | 76-80 | 255 | 845 | 171 | 171 | 98.5 | 165 | 314 | 356 | 318 | 274 | 82.5 |
| SKSR94-102 | 94-102 | – | 355 | 921 | 191 | 191 | 108 | 184 | 346 | 381 | 343 | 318 | 89.0 |
| Weight | N/A |
|---|---|
| Rope Diameter | 6-7mm, 8-10mm, 11-13mm, 14-16mm, 18mm, 20-22mm, 24-26mm, 28-30mm, 32-35mm, 38mm, 40-42mm, 44-48mm, 50-54mm, 56-60mm, 64-67mm, 70-73mm, 75-80mm, 82-86mm, 88-92mm, 94-102mm |
